Lally Columns

SKU:
LColumn001
Availability:
Call To Confirm Measurements

Call 1-800-679-8718

(No reviews yet)
Current Stock:




4” Diameter Round | 11 Gauge – Adjustable Columns*


Model   Adj. Length  Weight (#)  Maximum Load #

LA 459 (-)   1’0” - 5’11”  n/a  28,900
AC460   6’0” - 6’4”  37.8  28,900
AC463   6’3” - 6’7”  39.0  28,500
AC466   6’6” - 6’10”  40.3  28,100
AC469   6’9” - 7’1”  41.5  27,600
AC470   7’0” - 7’4”  42.8  27,200
AC473   7’3” - 7’7”  44.0  26,800
AC476   7’6” - 7’10”  45.3  26,300
AC479   7’9” - 8’1”  46.5  25,800
AC480   8’0” - 8’4”  47.8  25,300
AC483   8’3” - 8’7”  49.0  24,800
AC486   8’6” - 8’10”  50.3  24,400
AC489   8’9” - 9’1”  51.5  23,900
AC490   9’0” - 9’4”  52.8  23,400
AC493   9’3” - 9’7”  54.0  23,000
AC496   9’6” - 9’10”  55.3  22,400
AC499   9’9” - 10’1”  56.5  21,900
AC4100   10’0” - 10’4”  57.8  21,400
AC24000   10'5" - 24'  CALL  More Info here

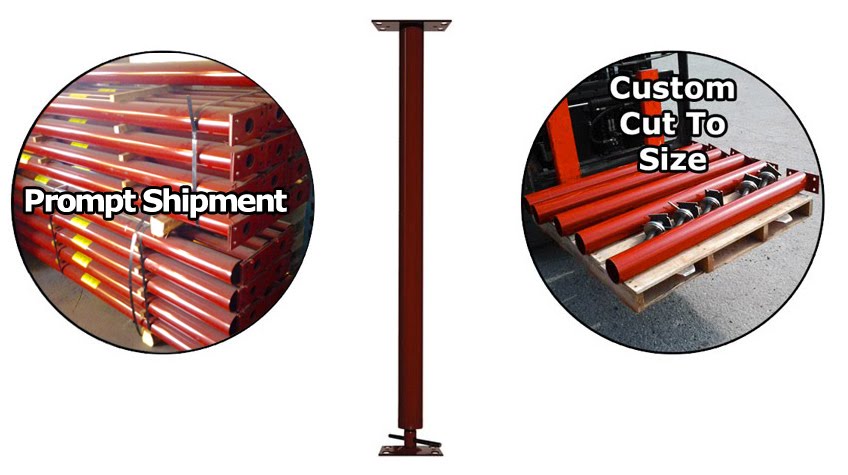

CUSTOM CUT LALLY COLUMN(S)

4” Diameter Round | 11 Gauge


• Complies with IRC and IBC

• Assembled with:
4” x 8” plate welded to top end

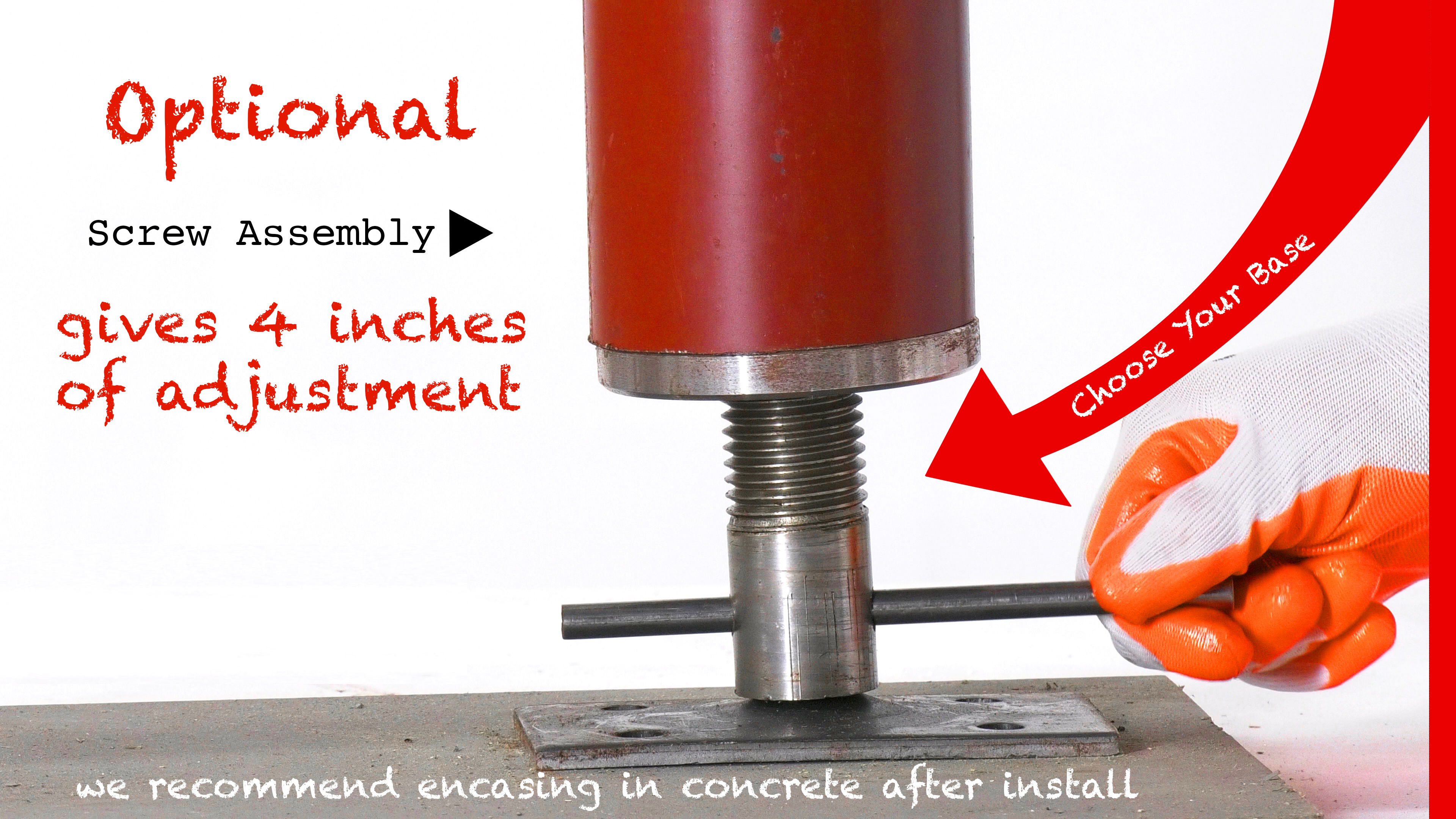

• Available screw base option with:

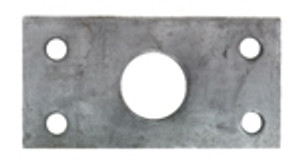

3-1/2” x 6” plate permanently attached to screw assembly for bottom end

• Flow-coated inside and out with red corrosion-resistant paint

• Straps available upon request

• Special sizes available upon request

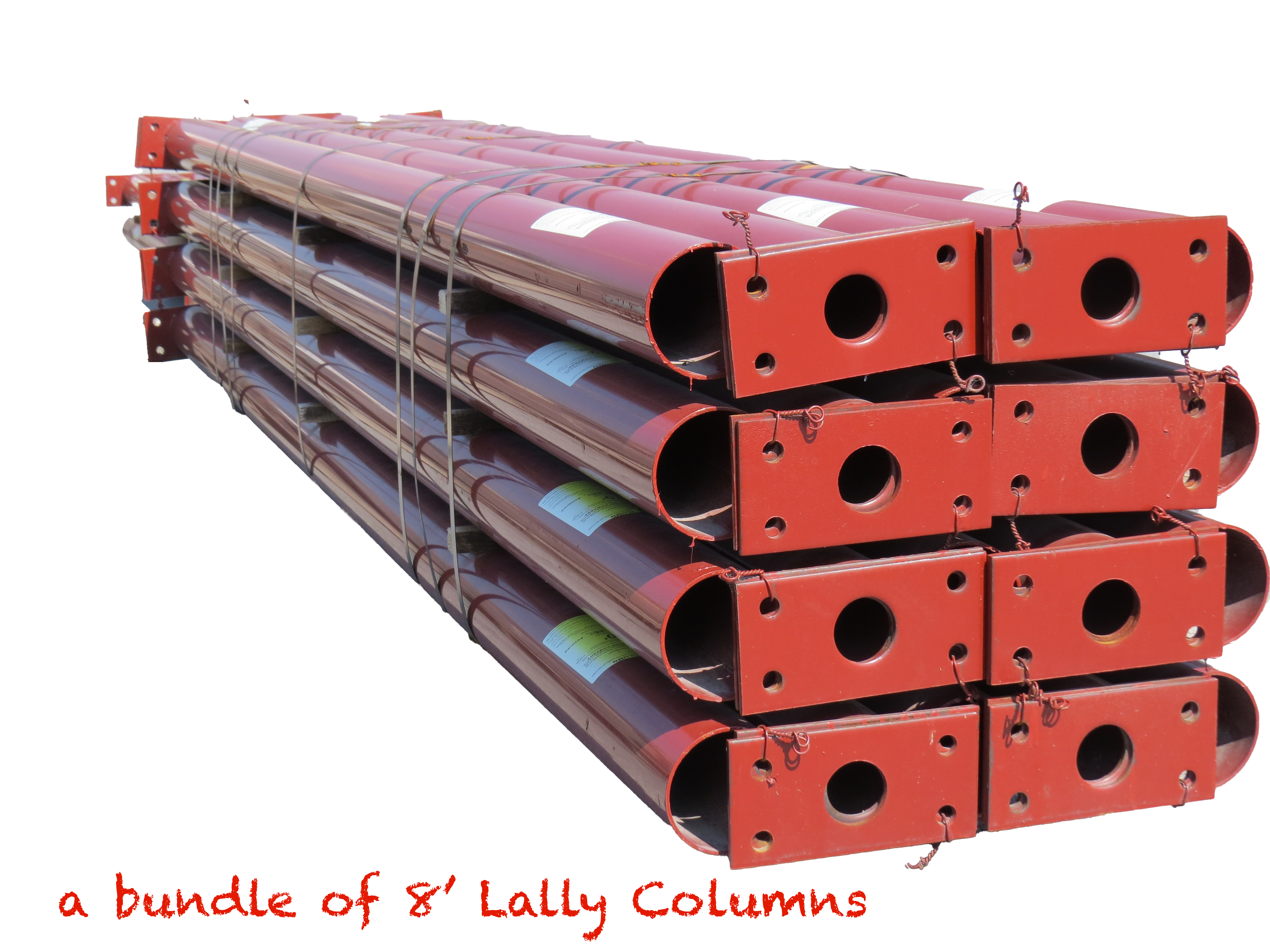

• Standard Bundles: 4” – 25 pieces

• All maximum weight loads listed below based on adjustable screw assembly for base end to be extended completely and encased in concrete.

• Column selection should depend upon structural calculations completed by a registered, professional engineer.

• Not responsible for the installation, alteration, or modification of any completed product, or the usage of any component in the fabrication of any product beyond our control.





Lally Columns are 4 inches in diameter and are made of 11 gauge steel.

PERMANENT LALLY COLUMN

Type: Fixed Length or Adjustable Length Custom Cut: Per requested measurement (if applicable) Tube Dimensions: 4 inch O.D. (outer diameter) Attached Plate Dimensions: 4 in x 8 in welded to top end Maximum Load Bearing: 28,900 lbs. Material: 11 gauge steel Color: Red (inside & out) with corrosion resistant paint Conforms to: IBC (International Building Code) and IRC (International Residential Code)

OPTION

For Adjustable Length Type: Permanent Screw Assembly (with turning bar) for 4 inch Lally Column

QUESTIONS?

To ask inquire about Lally Columns or anything else, please call us: 1-800-679-8718
