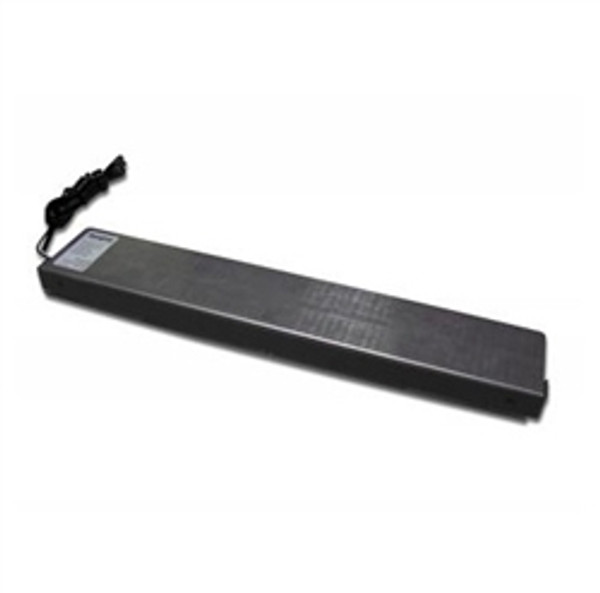

IL 18: LED Integral Light
- Wall Lighting elegant in the simplicity of design and function.
- Easy to install, no cutting, drilling, or chiseling required.
- Easy access to bulb for any maintenance needs.
Parallel Circuitry High Efficiency LEDs 160 deg light distribution White 3000K output Consumes 2.4w
LED package is mechanically secured to fixture and field serviceable
Standard 72” 18/2 Leads and 12v AC Magnetic Transformer compatible
Faceplates heavy duty and field replaceable
Aluminum .090 thick 5052T available in 13 polyester powder coated finishes
Four arrays – 64 chips 20 watt output 4.8 watt energy consumption
. White 3000K equivalent to Xenon . LED 70 CRI / 60LM/w . Multi Circuit Parallel LED structure . Field replaceable LED module
Solid Copper or Brass .090 thick . Stainless Steel 18g alloy 304 . 6-32 slotted brass or stainless steel screws . Self leveling insert is Heavy 18 gauge 304 Stainless Steel
. Nylon Lens with integrated heat sink . Circuitry encapsulated for moisture resistance . 72" long 18/2 leads attached . Voltage requirement min 8.0v AC / max 12.5v AC . Estimated life of 40,000 hours at 11.5v AC input . Engineered for magnetic transformers
